AD 55 T INSULATED

JOINERY SYSTEM

Aluminum profiles are produced from AIMgSi 0, 5 - F22 alloy and as per 12020 Standards.

Physical Properties:

Density 2,71 kg /cm3
Modulus of Elasticity 69 kN /mm2
Resistance 20° 33 n Q .m
Melting Point 600 - 655 °
Coefficient of Expansion 20 - 100° C μ ° C

Mechanical Properties

Limit of Elasticity 190 MPa
Tensile stress 220 MPa
Hardness 67 Brinell
Elongation % 10

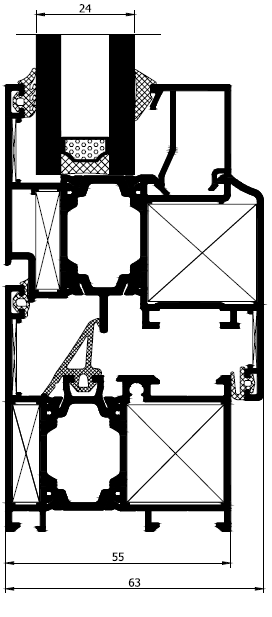

Profile Width: Frame 55mm - Wing 63mm

Thermal Barrier Measure: 18mm

Thermal Transmittance value ( Uf) : 2.520 W/m2K

Weatherstrip (Seal): All weatherstrips are Rubber EPDM.

Feasible Window Types: Inward-opening – Double-opening – Double Wing-opening - Woswagen Window - Pivot window types and Inward-opening Door – Outward-opening Doors.

Usable Glass Thickness: It provides the opportunity of using any double glazing by adjusting with glazing bead in consistence with the EPDM weatherstrip thicknesses and measures from the thickness of 4m single-glazing to the thickness of 34mm double-glazing.

Water discharge: All profiles have water discharge system.

Fittings: Profiles are pressed by using Press Angle block fittings and Claw L parts in order to ensure the corner joints. Central Sash Bars are connected by screwing from the outer frame and with blocks from the inner part.
