AD 45 UNINSULATED

WINDOW PROFILES

Aluminum profiles are produced from AIMgSi 0, 5 - F22 alloy and as per 12020 Standards.

Physical Properties:

Density 2,71 kg /cm3
Modulus of Elasticity 69 kN /mm2
Resistance 20° 33 n Q .m
Melting Point 600 - 655 °
Coefficient of Expansion 20 - 100° C μ ° C

Mechanical Properties

Limit of Elasticity 190 MPa
Tensile stress 220 MPa
Hardness 67 Brinell
Elongation % 10

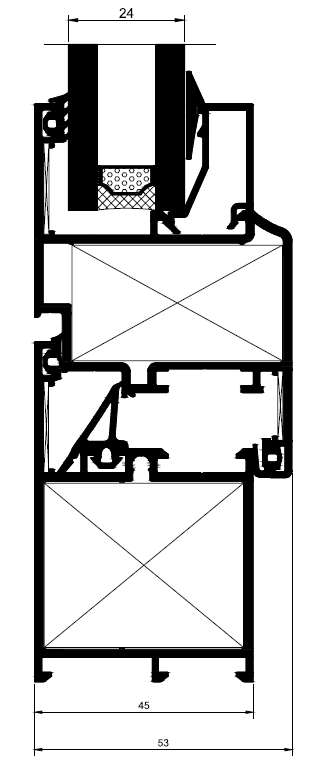

Profile Width: Frame 45mm - Wing 53mm

Seal System: Three-seal system

Thermal Transmittance value ( Uf): .... W/m2K

Weatherstrip (Seal): All waetherstrips are Rubber EPDM.

Feasible Window Types: Inward-opening – Double-opening – Double Wing-opening window types and inward-opening doors.

Usable Glass Thickness: It provides the opportunity of using any double glazing by adjusting with glazing bead in consistence with the EPDM weatherstrip thicknesses and measures from the thickness of 4m single-glazing to the thickness of 24mm double-glazing.

Water Discharge: All Profiles have Water discharge system.

Fittings: Profiles are pressed by using Press Angle block fittings and Claw L parts in order to ensure the corner joints.
